85063219

HUBER+SUHNER85063219

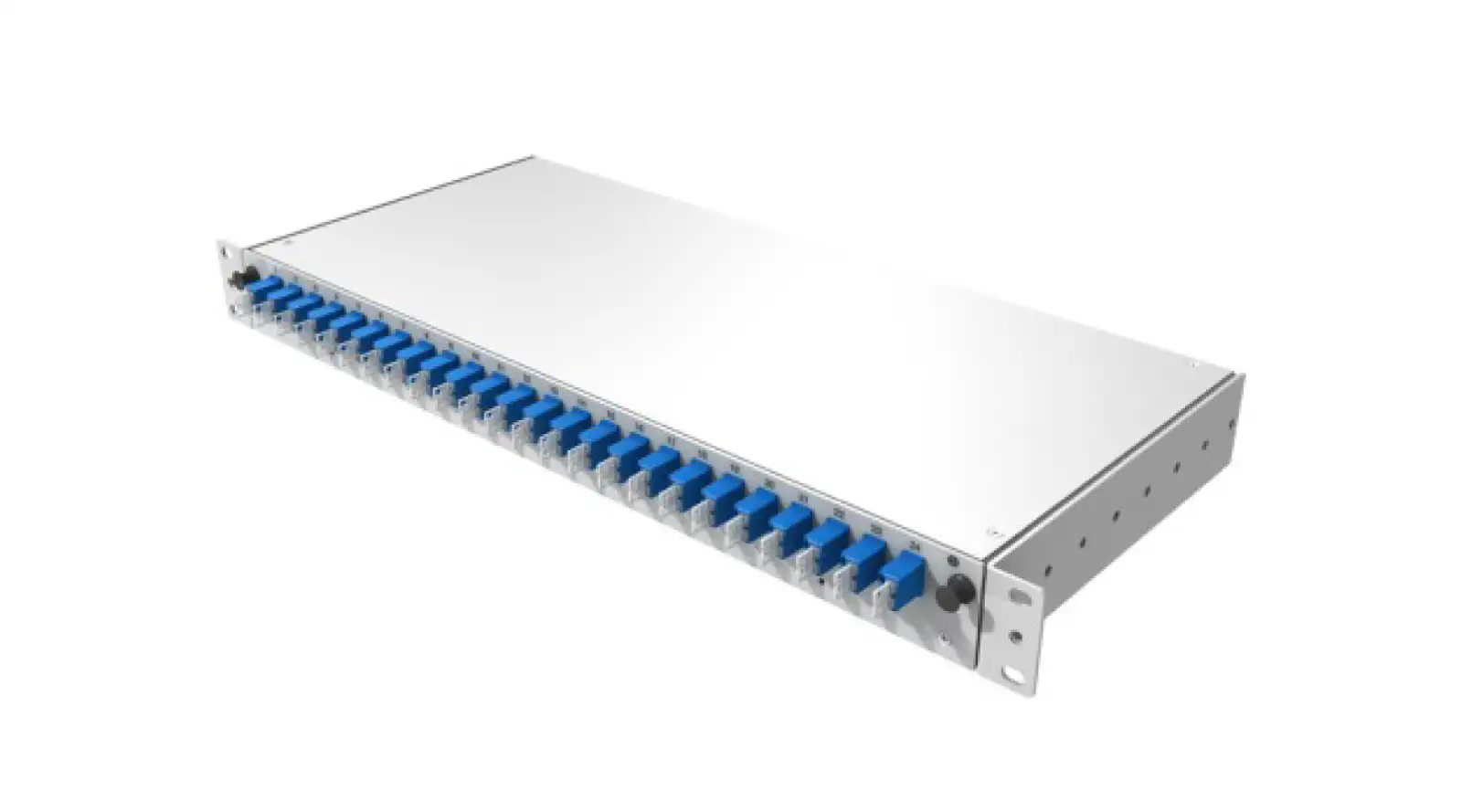

تصویر محصول HUBER+SUHNER 85063219

توضیحات

Fiber frame

Fiber frame, 24 x LC adaptor blue, OS2, UPC, 48 x pigtails, DIN

ویژگی ها و مزایای کلیدی

Standard 19" 1U size
Lightweight aluminum construction

Telescopic drawer with tilt of 25°
Up to 48 fibers per 1U

ویژگی های مکانیکی

Product family
Fiber frame
Suitable for
Splicing
Dimension (Width x Length x Height) (mm)
439 x 230 x 44
Weight (kg)
Material module
anodized aluminum
Color module
silver
Number of cassettes (pcs)
Mounting type
Front mounting
Drawer Tilt (°)
Number of Adaptor front (pcs)
Adaptor type front
LC

Adaptor type front polishing
UPC
Adaptor color front
blue
Color code
DIN
Fiber type
Singlemode 9/125 µm OS2
Module insertion loss
Singlemode OS2: <=0.50 dB
Module return loss
Singlemode OS2 PC: >=50dB
Resistance to impact
IK03
Ingress protection degree
IP20
Free of halogen
Yes
RoHS compliant
Yes
REACH compliant
Yes

Description

Fiber frame

Fiber frame, 24 x LC adaptor blue, OS2, UPC, 48 x pigtails, DIN

Key Features

Standard 19" 1U size
Lightweight aluminum construction
Telescopic drawer with tilt of 25°

Mechanical Characteristics

Product family:

Fiber frame

Suitable for:

Splicing

Dimension (Width x Length x Height) (mm):

439 x 230 x 44
