FB-00-SF6A/7-CCA-R3-LB

Name: Cat.6A Cable, CPR Euro-Class Cca
Brand: FARBIN
SKU: FB-00-SF6A/7-CCA-R3-LB

Description

Cat.6A Cable, CPR Euro-Class Cca

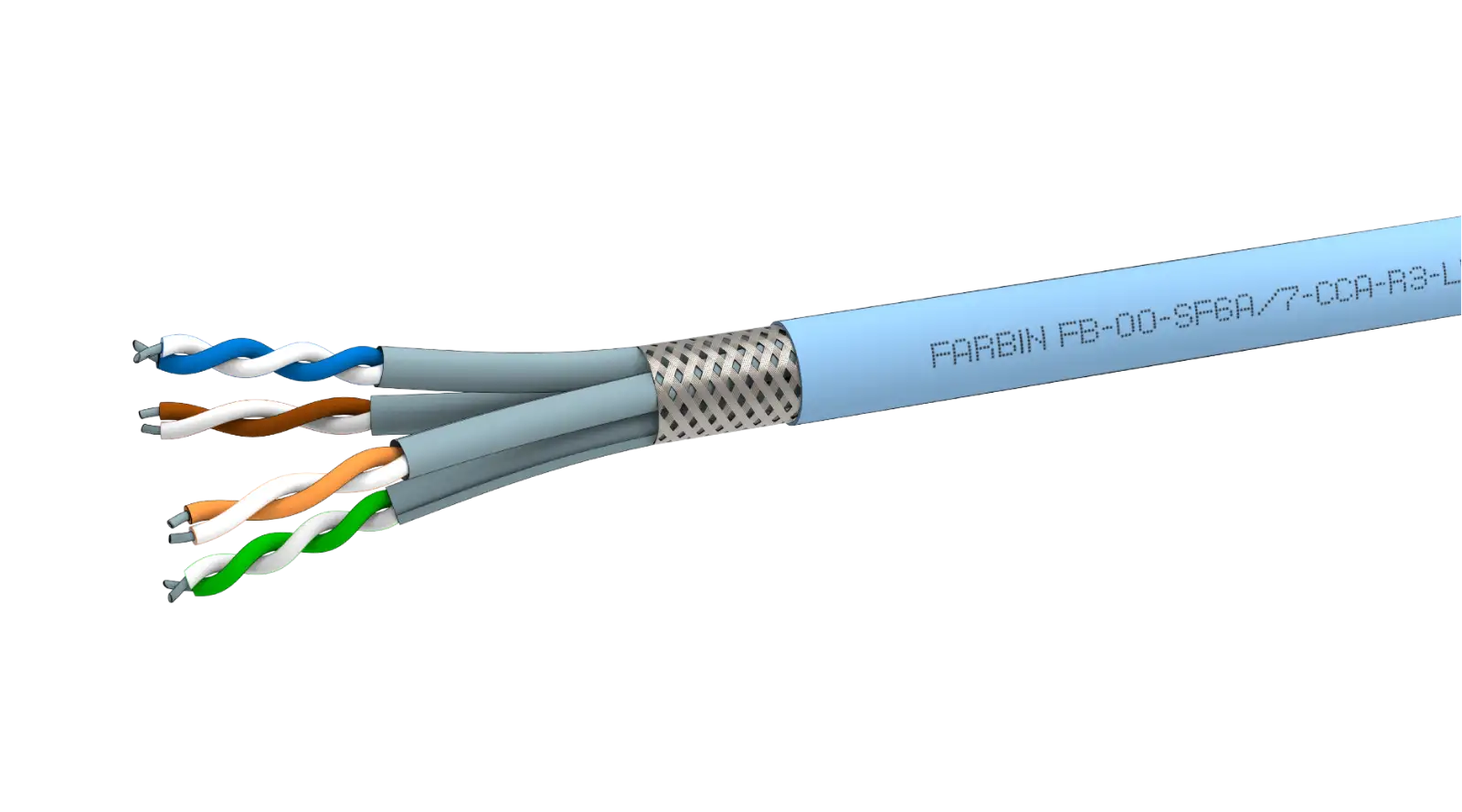

FARBIN FB-00-SF6A/7-CCA-R3-LB, 4-Pair S/FTP 600MHz Cat.6A extended to Cat.7 cable, 23AWG (~0.565) solid bare copper, Rip cord, LSFH Class Cca s1a, d1, a1 jacket, Light Blue color

Key Features

40% overall braided shielding and 4 twisted pairs individually foil screened for enhanced mechanical robustness and excellent EMI & RFI immunity
Certified TCL & ELTCL Common Mode (CM) for running PoE+ and PoE++

CPR Cca rated with FRNC & LSFH jacket

Mechanical Characteristics

Operating Temperature
Installation: 0°C to +50°C Operating: -20°C to +60°C
Max. Tensile
~11kg (110N)

Min. Bend Radius
8 x Outer Diameter (Installation) 4 x Outer Diameter (Operation)
NVP
74%

Standards

ANSI/TIA 568.2-D
ISO/IEC 11801 Class Ea and Class F
IEC 61156-5
EN50173-1 and EN 50288-11-1

Supports IEEE 10GBASE-T
IEEE 802.3bt PoE Type 1, 2, 3 and 4 (100 watts max)
Cisco UPoE (60 Watts), Cisco UPoE+ (90 Watts max)
Power over HDBaseT™ PoH (95 Watts max)

Fire Standards

Classification/ Euro Class
EN 50575, EN 13501-6 CPR Rating Cca s1a, d1, a1
Flame Rating
IEC 60332-1-2
Flame Rating (Bundle Cables)
IEC 60332-3-24

Smoke Emission
EN 13501-6 (s1a) EN 61034-2 Light transmittance ≥80%
Acid Gas Emission
IEC 60754 (a1)

Physical Characteristics

Conductor
4-Pair solid bare copper
AWG (mm)
23 (0.565 ±0.005)
Insulation
PE (O.D: 1.330 ±0.05mm)

Inner Screen
Aluminum/Mylar (Foil screen)
Outer Screen
Tinned copper, Coverage: ≥40%
Jacket
External O.D: 7.6 ±0.5mm CPR Cca s1a, d1, a1 (FR-LSZH) Light Blue (PANTONE® 283C) Sequential marking at one meter

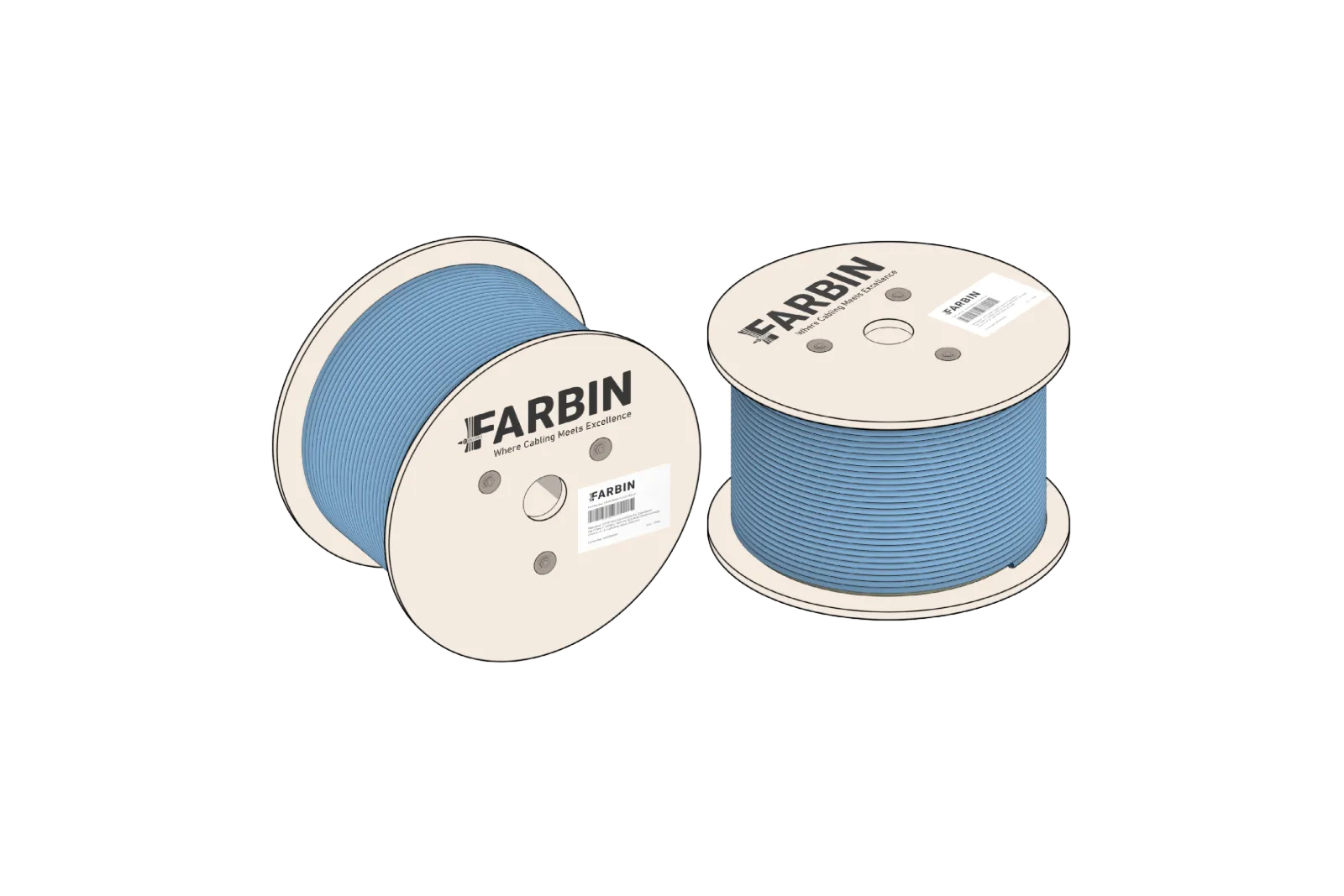

Packing

Wooden Drum (305m ±1m)

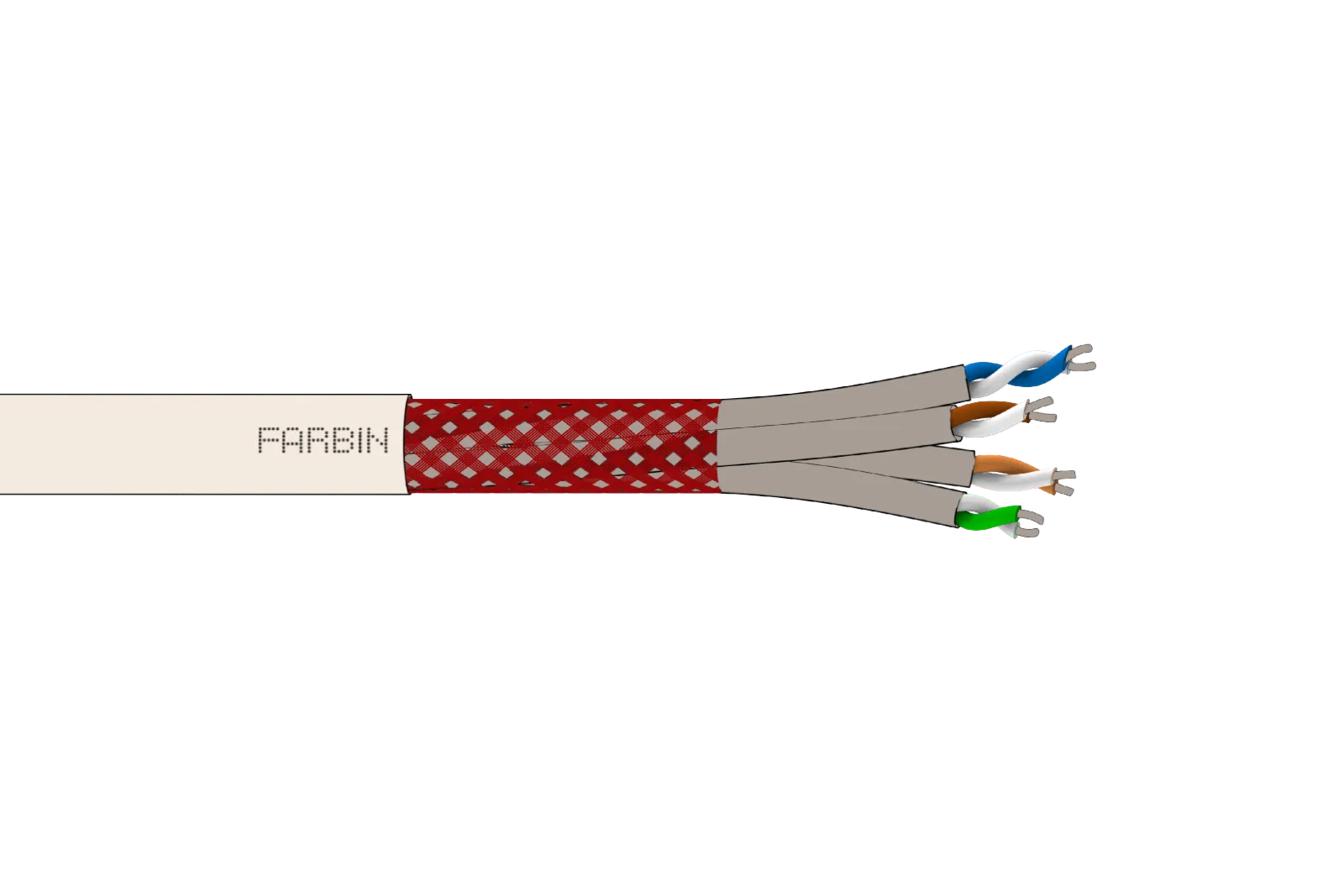

40% Shield Coverage

Designed to reduce external sources of noise (EMI/RFI)

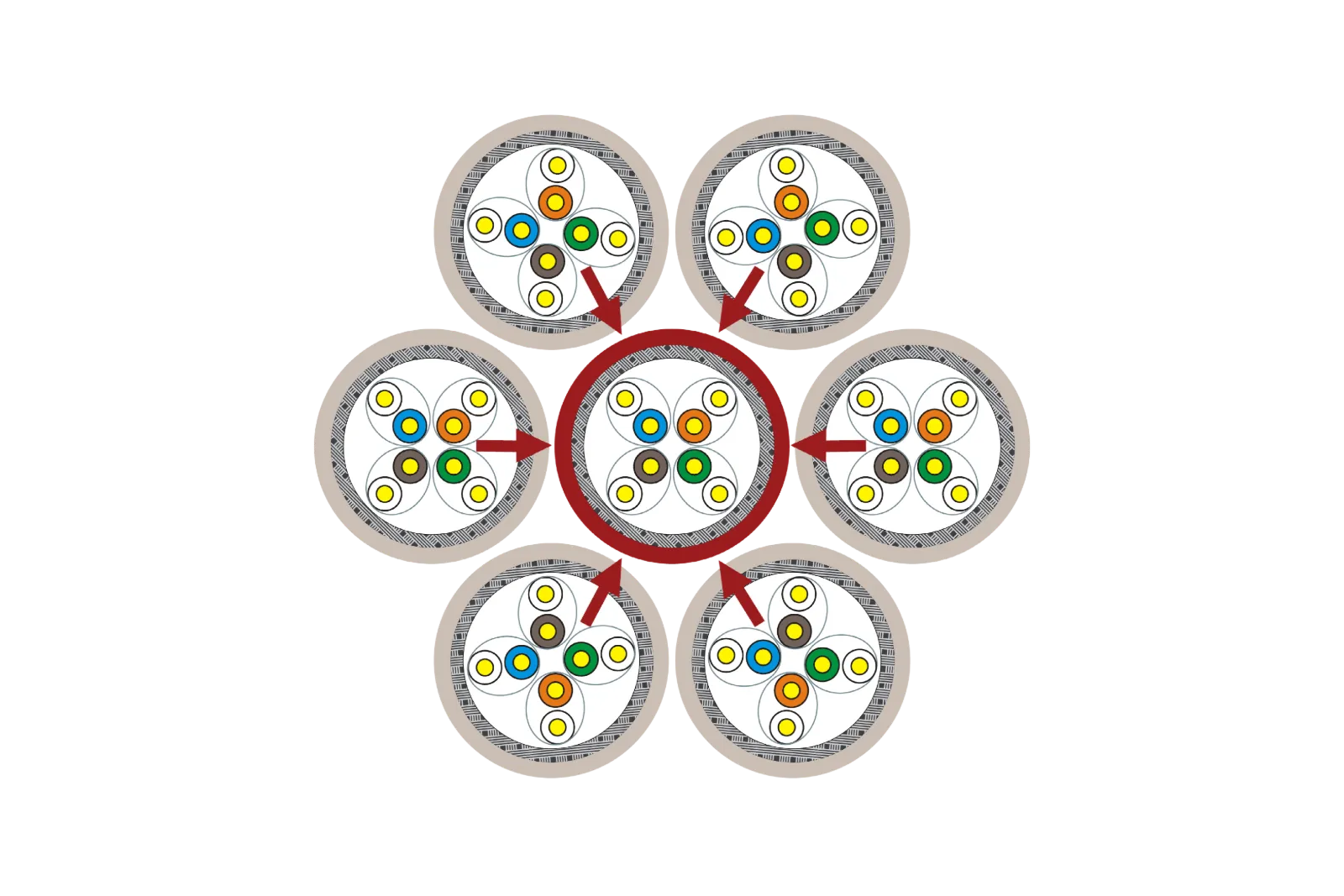

Measured Alien crosstalk (AXT)

PSANEXT and PSAACR-F is certified in worst-case scenario of 6-around-1 tight cable bundle by Fluke DSX CableAnalayzer™

Description

Cat.6A Cable, CPR Euro-Class Cca

FARBIN FB-00-SF6A/7-CCA-R3-LB, 4-Pair S/FTP 600MHz Cat.6A extended to Cat.7 cable, 23AWG (~0.565) solid bare copper, Rip cord, LSFH Class Cca s1a, d1, a1 jacket, Light Blue color

About

FARBIN Category 6A S/FTP cable exceeds performance ANSI/TIA-568.2-D and ISO/IEC 11801 Class Ea component-rated standards.

Certified channel performance in a 4-connector configuration up to 100m and exceeding category 6A and Class Ea standards beyond the 500MHz frequencies and up to 600MHz.

The cable is covered by a low smoke, flame-retardant with CPR Cca (LSFH) rated outer jacket.

Key Features

40% overall braided shielding and 4 twisted pairs individually foil screened for enhanced mechanical robustness and excellent EMI & RFI immunity
Certified TCL & ELTCL Common Mode (CM) for running PoE+ and PoE++
CPR Cca rated with FRNC & LSFH jacket

Mechanical Characteristics

Operating Temperature:

Installation: 0°C to +50°C Operating: -20°C to +60°C

Max. Tensile:

~11kg (110N)

Min. Bend Radius:

8 x Outer Diameter (Installation) 4 x Outer Diameter (Operation)

Standards & Applications

ANSI/TIA 568.2-D
ISO/IEC 11801 Class Ea and Class F
IEC 61156-5

Physical Characteristics

Conductor:

4-Pair solid bare copper

AWG (mm):

23 (0.565 ±0.005)

Insulation:

PE (O.D: 1.330 ±0.05mm)

Fire Standards

Classification/ Euro Class:

EN 50575, EN 13501-6 CPR Rating Cca s1a, d1, a1

Flame Rating:

IEC 60332-1-2

Flame Rating (Bundle Cables):

IEC 60332-3-24

Packing

Wooden Drum (305m ±1m)

40% Shield Coverage

Designed to reduce external sources of noise (EMI/RFI)

Measured Alien crosstalk (AXT)

PSANEXT and PSAACR-F is certified in worst-case scenario of 6-around-1 tight cable bundle by Fluke DSX CableAnalayzer™
