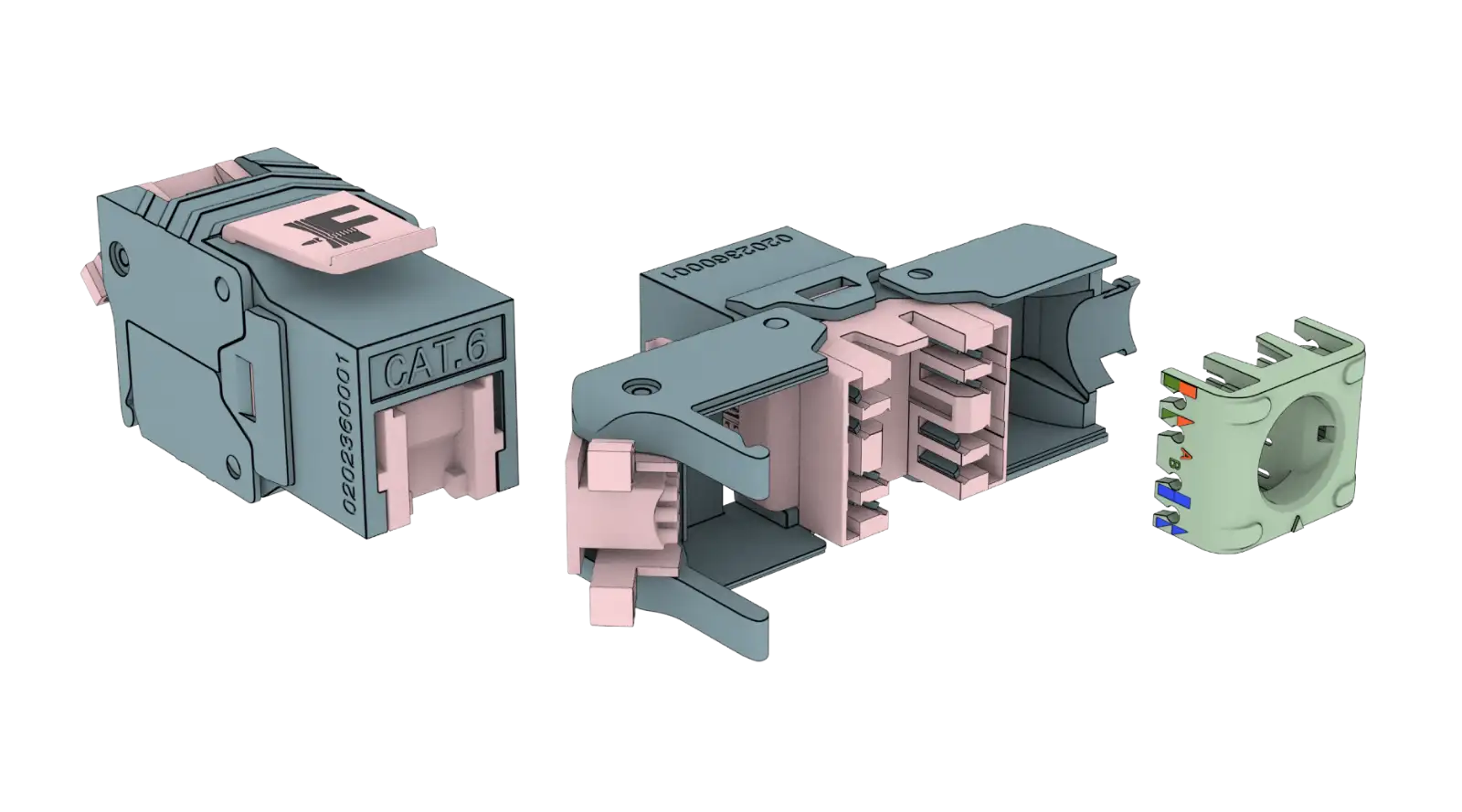

FB-00-S6JK-180SC-SL-PK25

Name: Cat.6 Component-rated Keystone Jack
Brand: FARBIN
SKU: FB-00-S6JK-180SC-SL-PK25

Description

Cat.6 Component-rated Keystone Jack

FARBIN FB-00-S6JK-180SC-SL-PK25, Cat.6 Component-rated Tool-less STP Keystone Jack with Shutter, 25Pcs in each box

Key Features

Component-rated Keystone jack is independently tested and guaranteed to exceed all component, permanent link and channel margin
The keystone jack protects critical data from EMI (Electromagnetic Interference) and RFI (Radio Frequency Interference)

It has been tested as part of FARBIN copper structured cabling system with electrical channel requirements of 4-connector standard configuration up to 100 meters and exceeds the requirements of standards swept up to 450 MHz for supporting Gigabit Ethernet Transmission over twisted-pair cabling systems
Robust housing and Internal shutter protects the jack in harsh environments

Mechanical Characteristics

Temperature Range
Operation: -10°C to +60°C
Cable OD Range
5.5 to 8.5mm
Shielded Housing Material
Zinc die-casting with nickel plating
IDC Contact Material
Phosphor bronze with tin plating
Durability
Min. 750 Mating cycles

IDC Re-installing Cycles
Min. 20 cycles Mating force: ≤ 30N
Retention strength
7.7 kg between jack & plug
Cable-clamper
PC, UL94-V2, Blue
Shutter Material
ABS+PC, UL94-V0, White

Standards

ANSI/TIA-568.2-D Cat.6
ISO/IEC 11801-1 Class E
EN 50173-1 Class E
ANSI/TIA-1096-A compliant 50µ of gold plating
IEC 60603-7-1 dimension & reliability requirement

IEC 60512-99-002:2022
IEEE 802.3bt PoE Type 4 class 8 (PoE++)
Cisco UPOE, UPOE+ (90 watts Max)
Maximum power at PD: 71.3 W

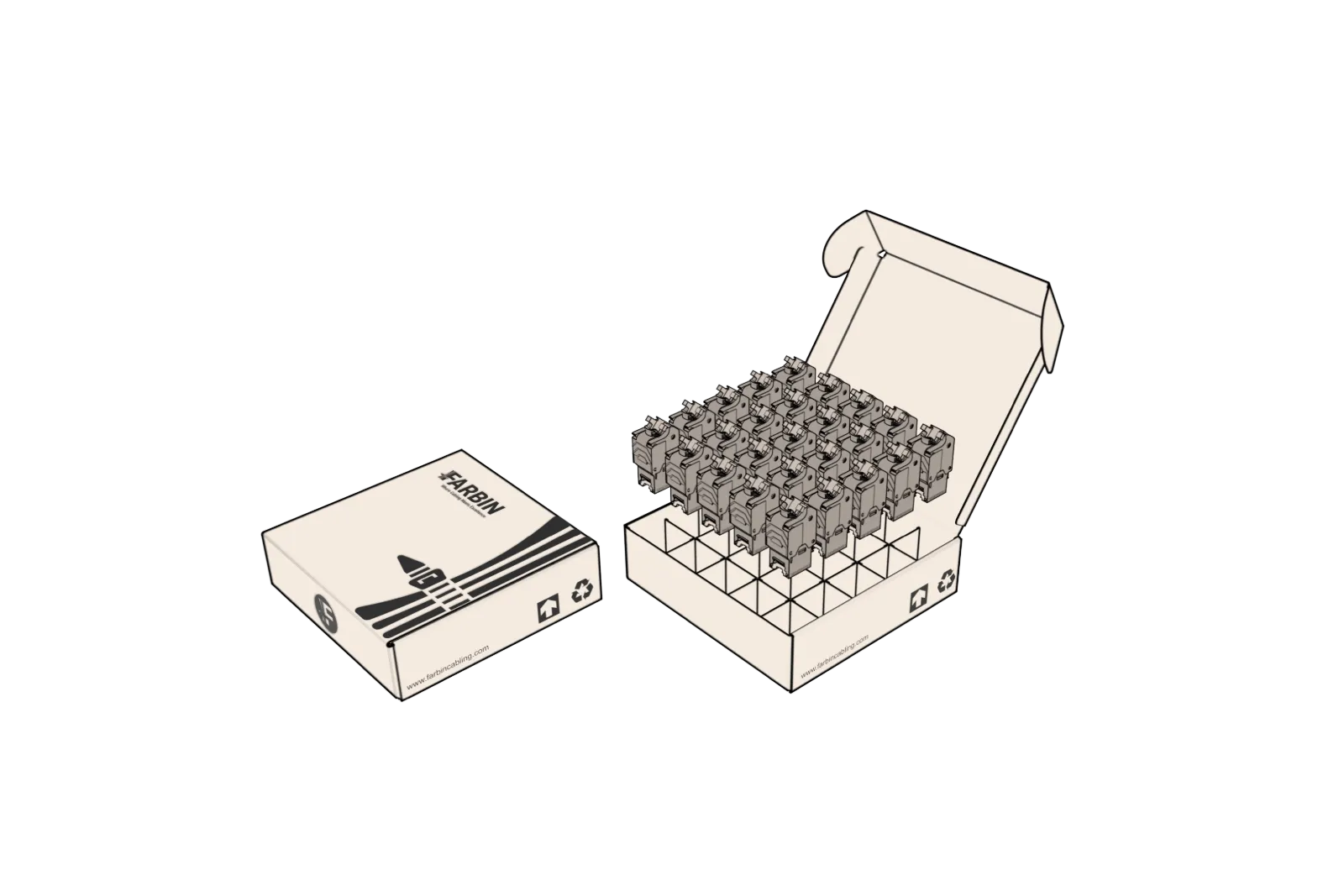

Packing Layout

Cardboard box
L x W x H: 139x132x60mm
25Pcs keystone jack in each box

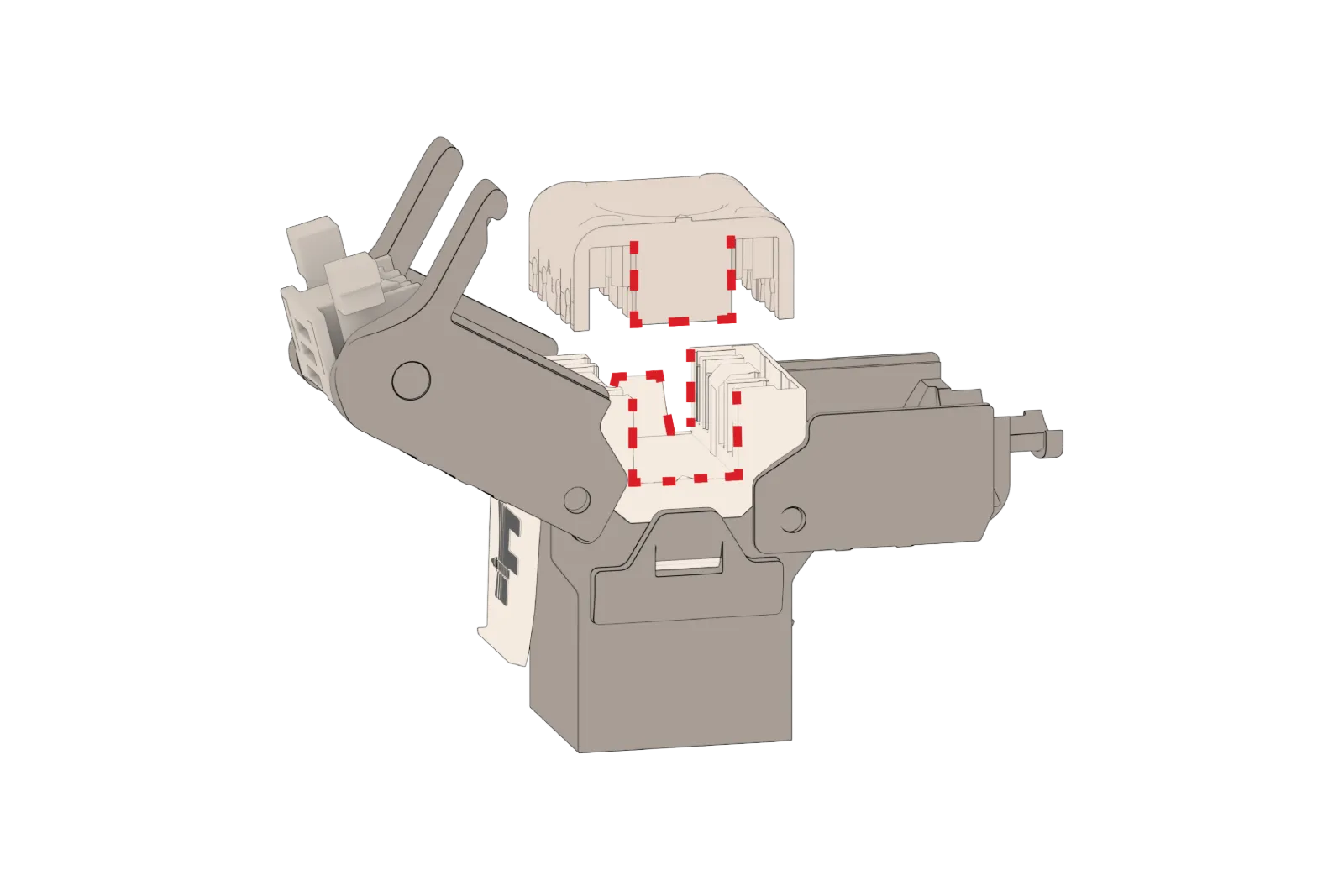

Foolproof Cap

Prevent cap misplacement
Secure the cap in the jack

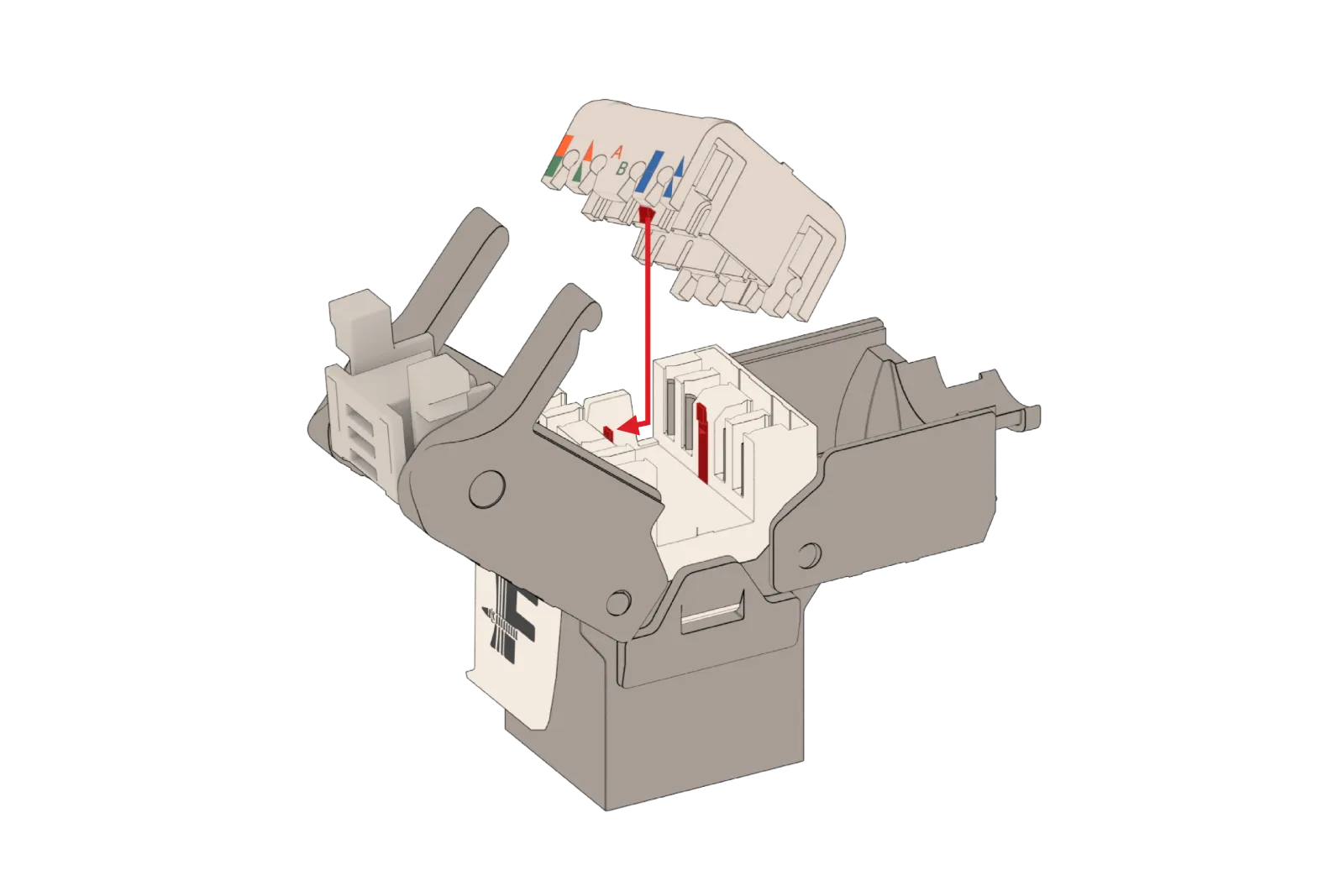

Force-Balance Mechanism

Easily sit flat on the IDC before terminate the jack

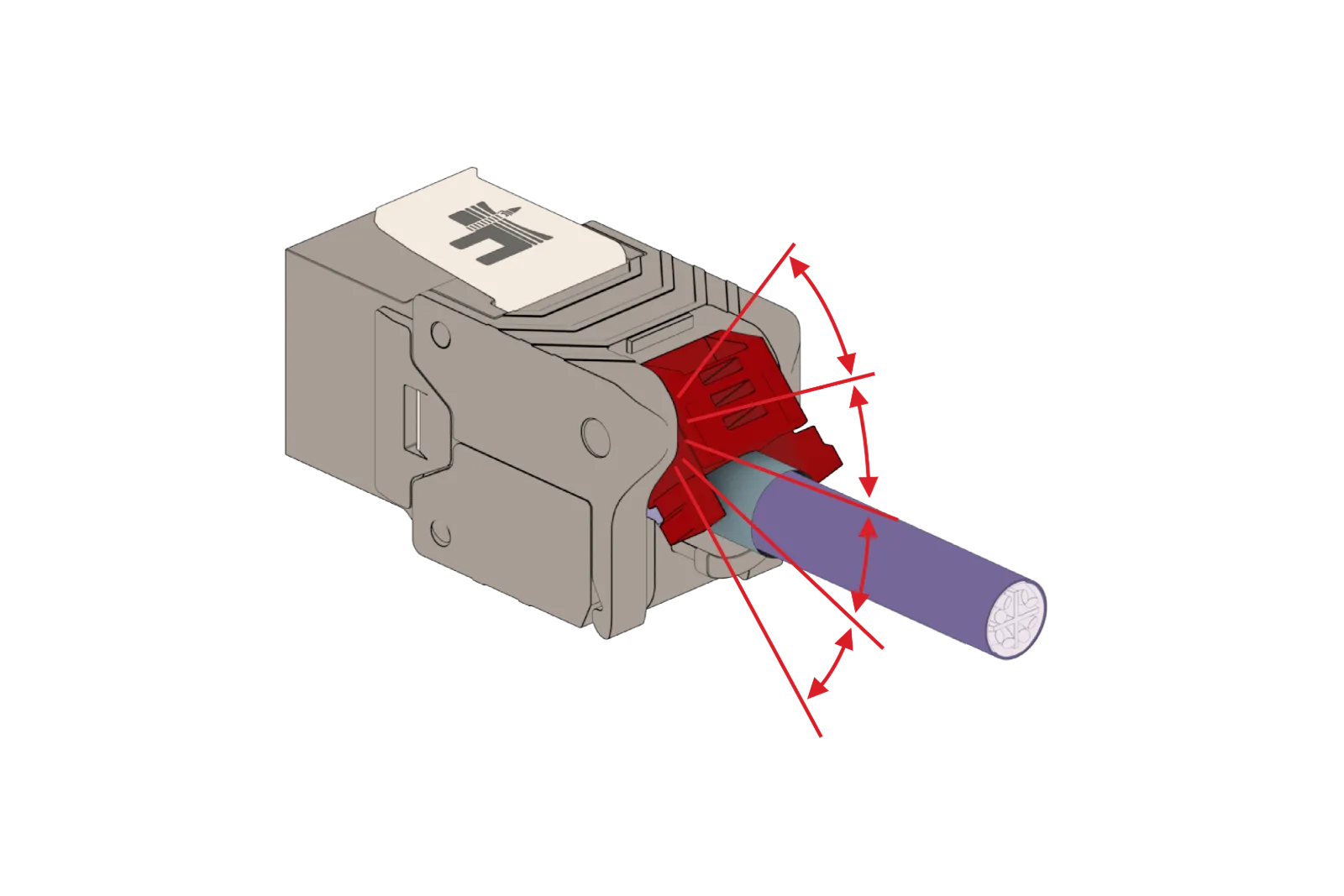

Lock & Go Cable Clamp

No cable zip ties required
Easily switch between sizes

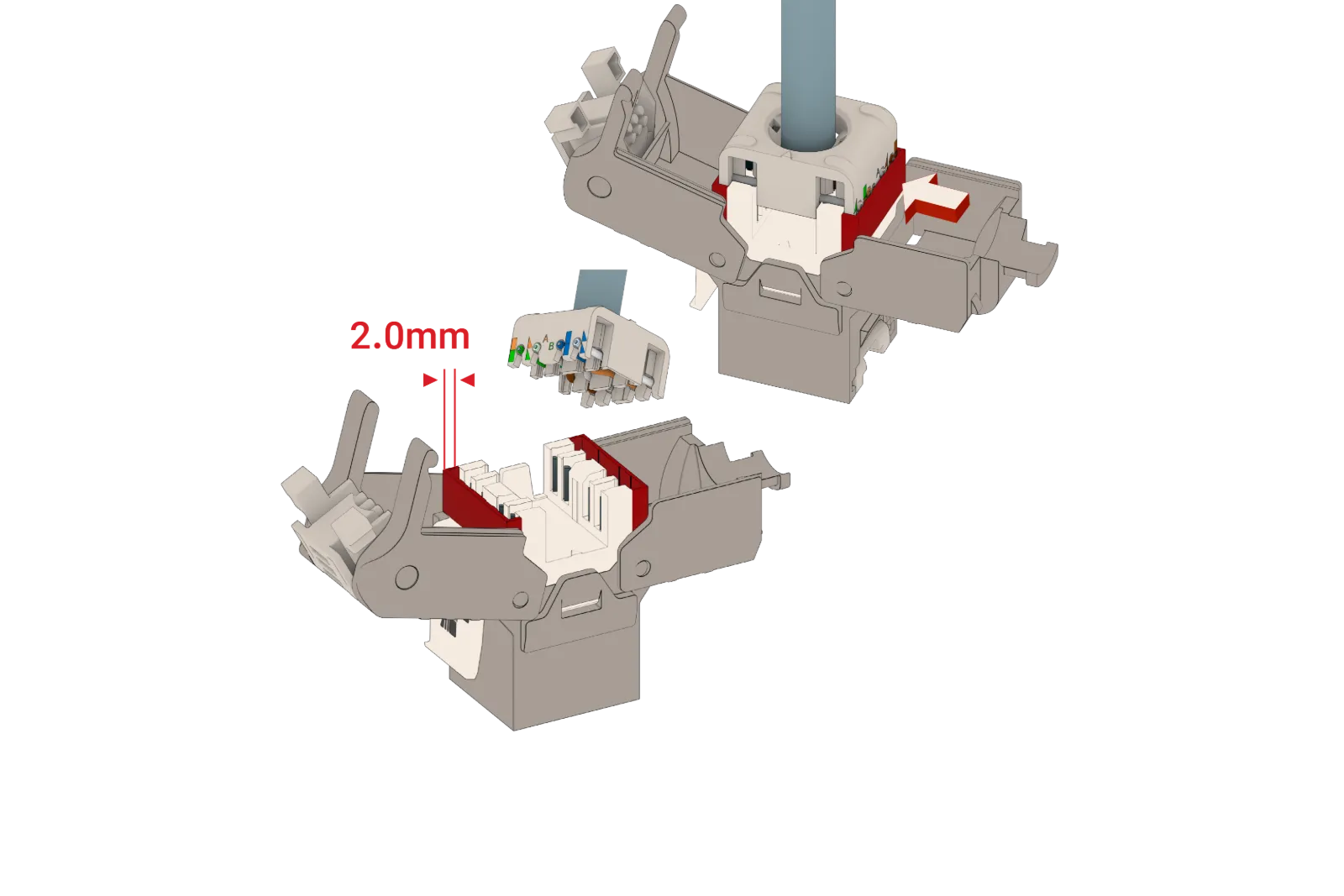

Short Circuit Protection

Securely separating exposed wires from the shielded housing

Description

Cat.6 Component-rated Keystone Jack

FARBIN FB-00-S6JK-180SC-SL-PK25, Cat.6 Component-rated Tool-less STP Keystone Jack with Shutter, 25Pcs in each box

About

FARBIN Cat.6/Class E; 8-Position fully shielded Component-rated Keystone Jack is designed to terminate 4-pair, 23-26 AWG twisted pair cable and shall not require a punch-down tool. Each keystone jack is 100% factory tested to exceeds optimum industry standard performance requirements.

The shielded keystone jack protects critical data from potential EMI/RFI.

Key Features

Component-rated Keystone jack is independently tested and guaranteed to exceed all component, permanent link and channel margin
The keystone jack protects critical data from EMI (Electromagnetic Interference) and RFI (Radio Frequency Interference)
It has been tested as part of FARBIN copper structured cabling system with electrical channel requirements of 4-connector standard configuration up to 100 meters and exceeds the requirements of standards swept up to 450 MHz for supporting Gigabit Ethernet Transmission over twisted-pair cabling systems

Mechanical Characteristics

Temperature Range:

Operation: -10°C to +60°C

Cable OD Range:

5.5 to 8.5mm

Shielded Housing Material:

Zinc die-casting with nickel plating

Standards & Applications

ANSI/TIA-568.2-D Cat.6
ISO/IEC 11801-1 Class E
EN 50173-1 Class E

Packing Layout

Cardboard box
L x W x H: 139x132x60mm
25Pcs keystone jack in each box

Foolproof Cap

Prevent cap misplacement
Secure the cap in the jack

Force-Balance Mechanism

Easily sit flat on the IDC before terminate the jack

Lock & Go Cable Clamp

No cable zip ties required
Easily switch between sizes

Short Circuit Protection

Securely separating exposed wires from the shielded housing
