FB-00-PP1U-24ANG-UNLD-BK

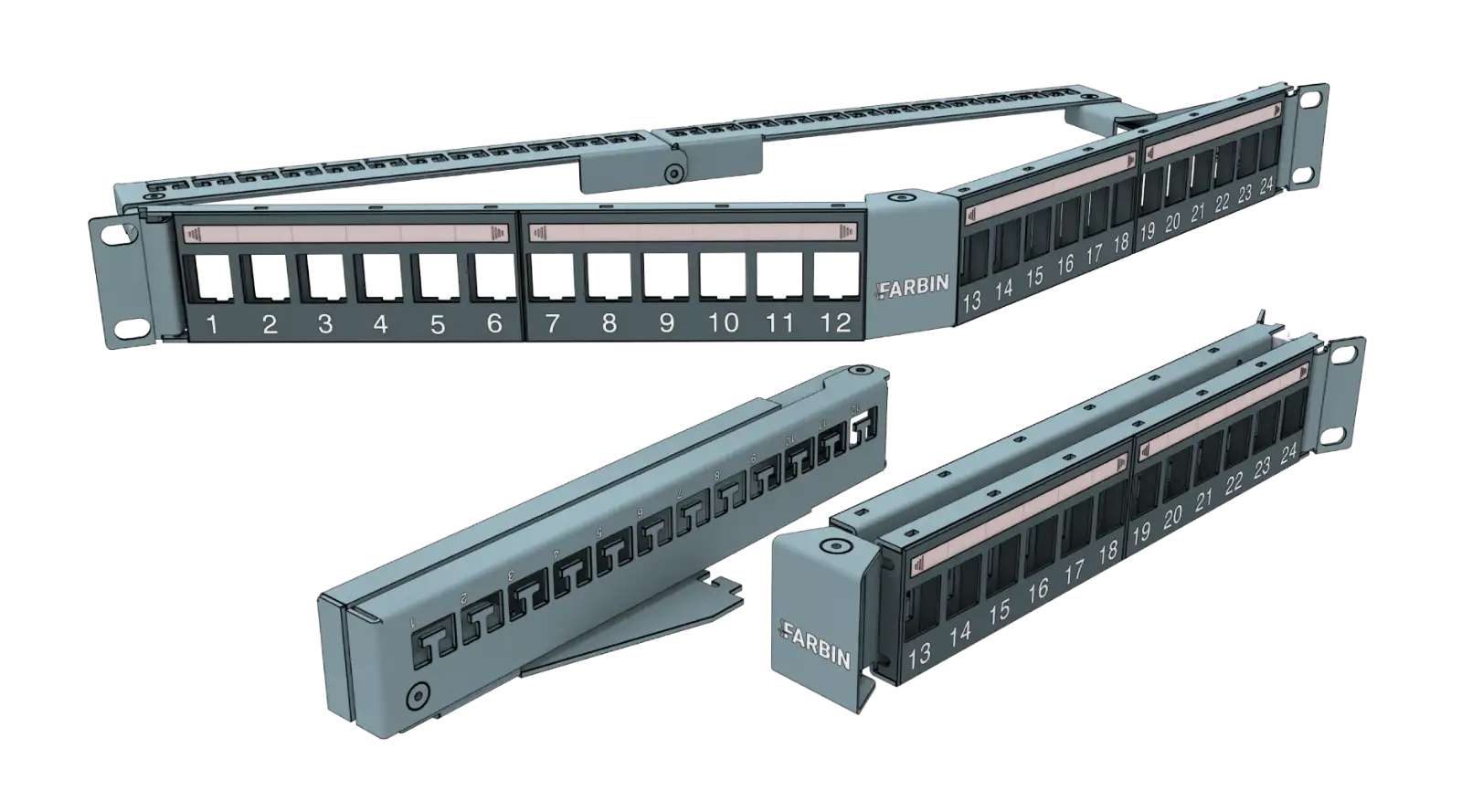

FB-00-PP1U-24ANG-UNLD-BK product image

Description

1U/24Port Unloaded Angled Patch Panel

FARBIN FB-00-PP1U-24ANG-UNLD-BK, 1U Angled Unloaded Patch panel accepts 24pcs of Cat.6/6A Keystone Jacks. Panel contains magnify ID-label and Strain Relief Bar

About

FARBIN 24-port Unloaded Angled Patch panels shall consist of a metal panels and fold-able rear Strain Relief Bar.

Unloaded panel shall accept STP Cat.6A and STP/UTP Cat.6 keystone jack.

The panel shall have the ability to allow for single port replacement of inoperative ports. Panel with label ID holder shall magnify the label print.

Key Features

  • Mounts on 19-inch equipment cabinets and network racks
  • Dedicated areas allow for port and panel identification without adhesive labels
  • Panel accepts both Cat.6 and 6A jacks

Mechanical Characteristics

Support-bar:

1.5 mm thickness with Black (RAL9005) color painted

Rear Panel:

1.5 mm thickness with Zinc-plated

Front Panel Edge:

Black (RAL9005) color painted after Zinc-plated for both side

Standards & Applications

  • ANSI/TIA-568.0-E
  • ISO/IEC 60603-7
  • ISO/IEC 11801-1

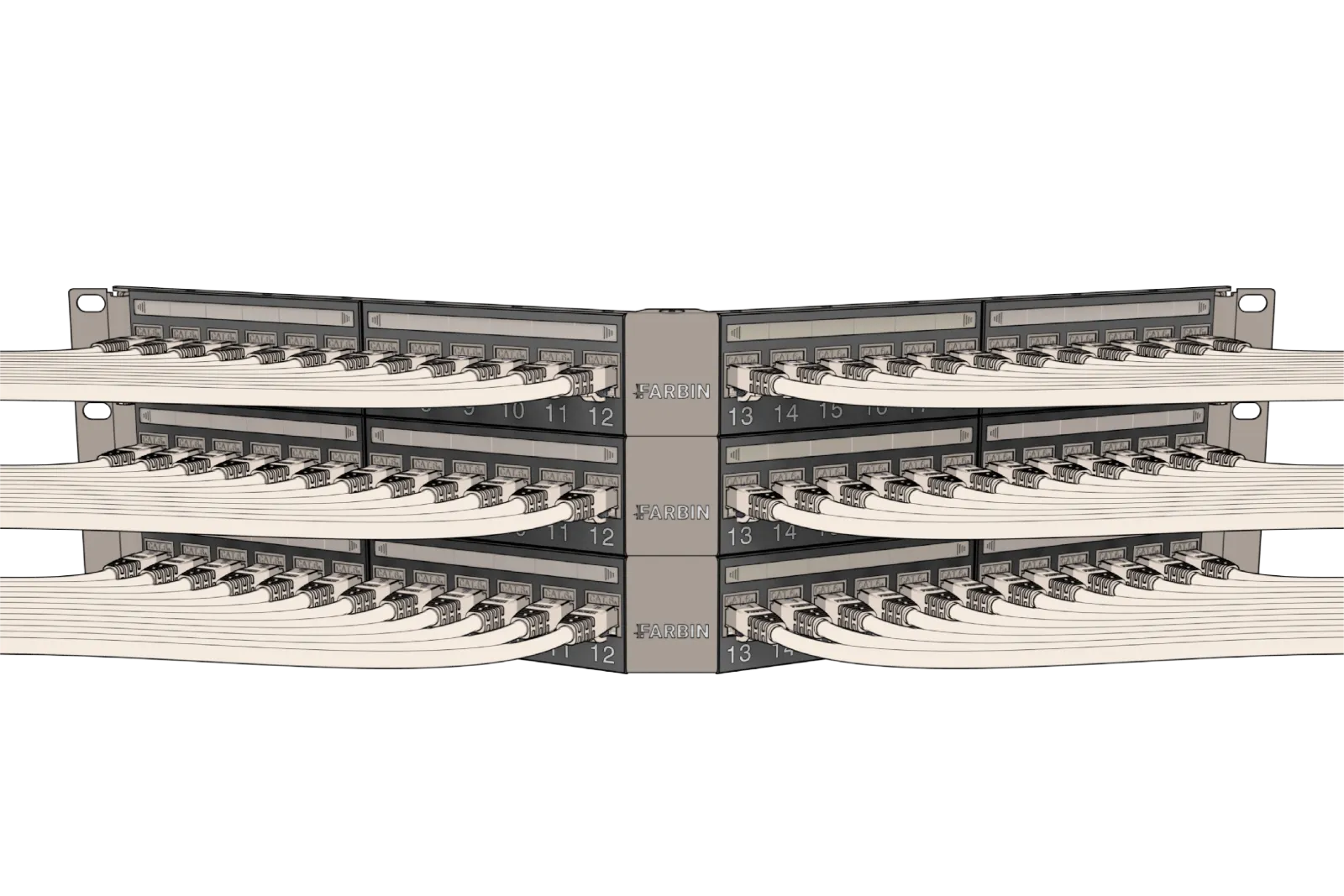

Space Saving

Space Saving

  • Angled panel saving rack space by eliminating horizontal cable/patch cord management

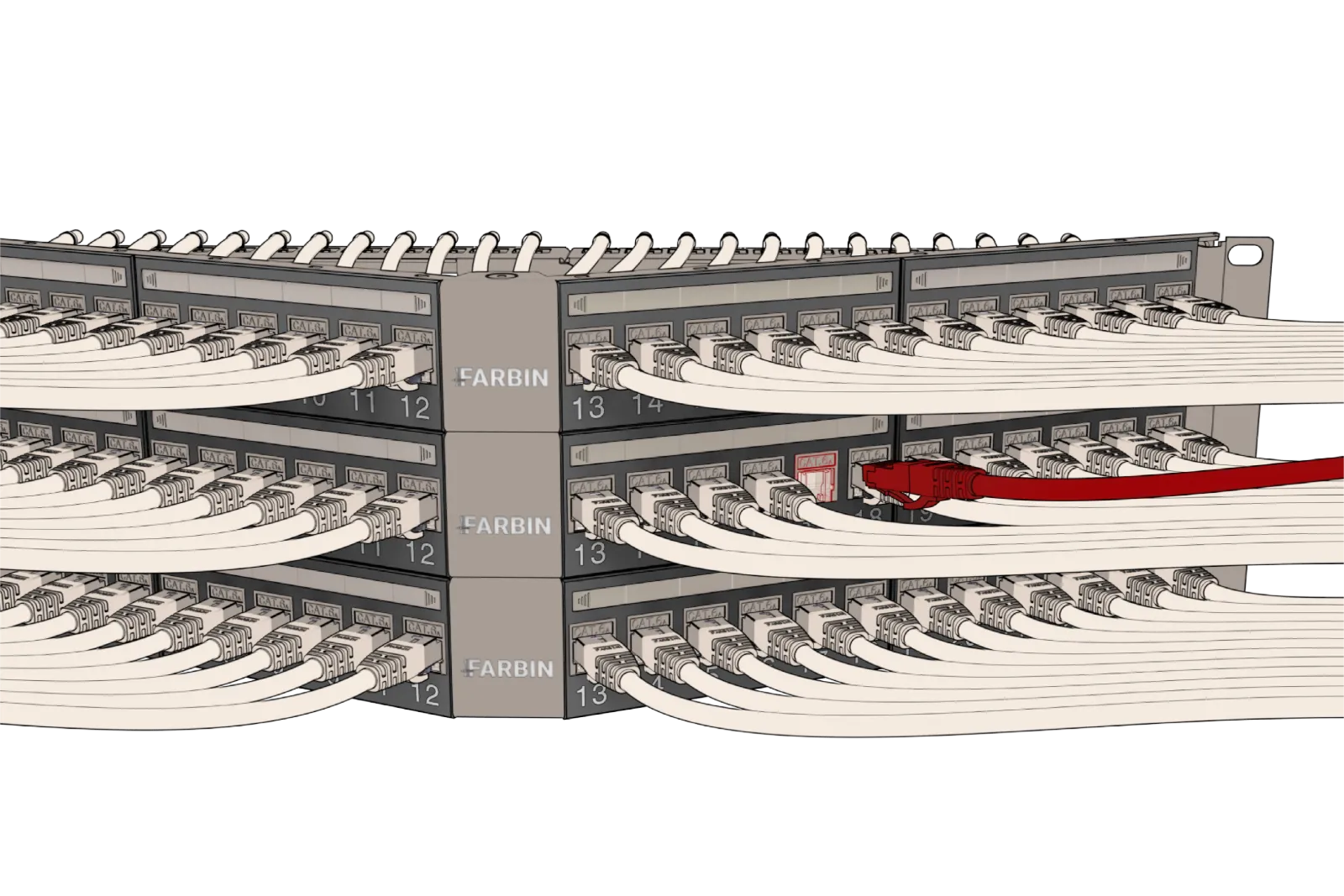

Control the Patch Cord Cable Carve

Control the Patch Cord Cable Carve

  • Patch panel with an angled design which allow the cable run into each side of rack, creating a correct cable radius of curvature

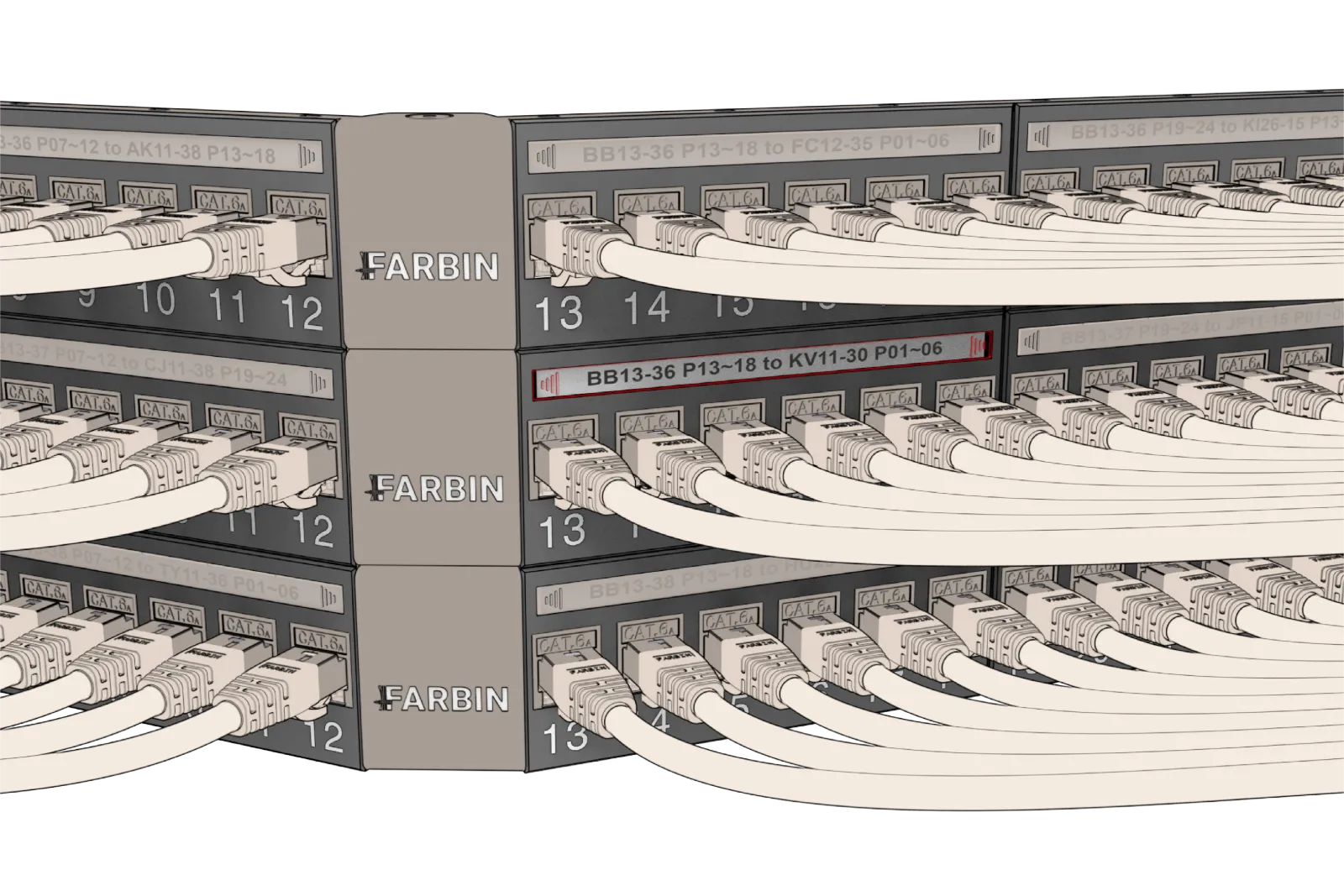

Magnifying ID-Label

Magnifying ID-Label

  • Magnifying lens label holders for easy reading

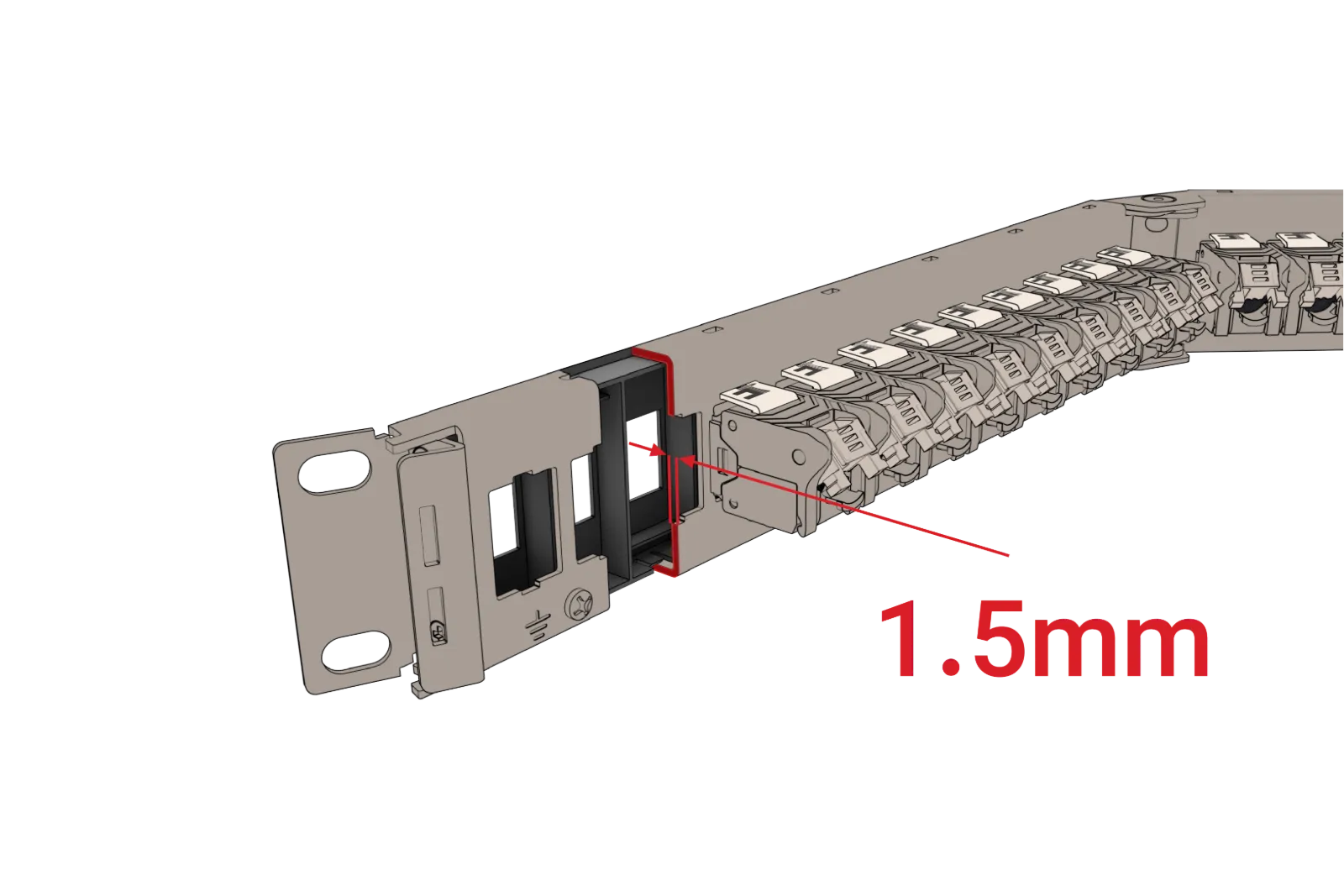

Robust Structure

Robust Structure

  • SPCC rear panel, 1.5mm thickness with Zinc-plated

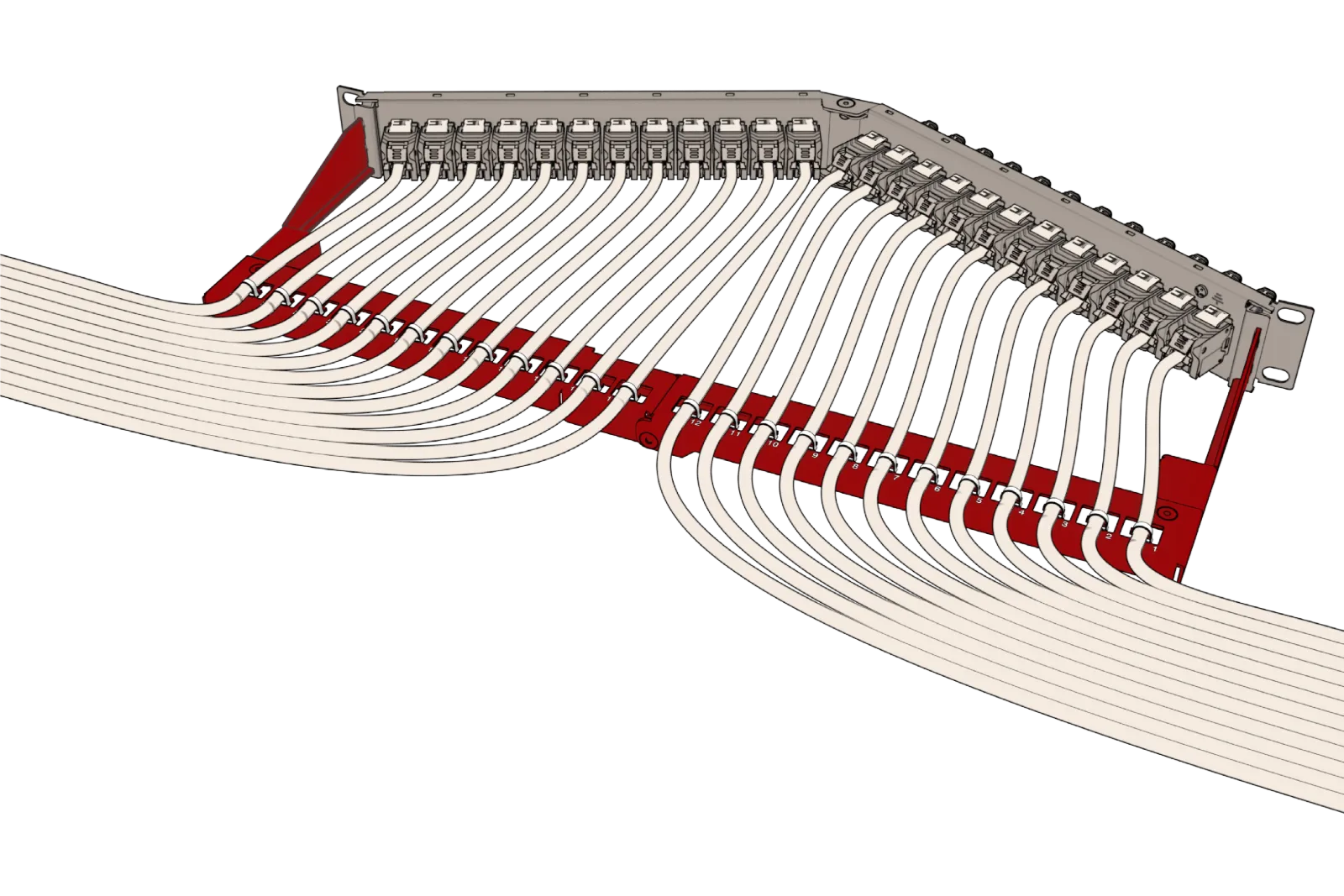

Strain Relief Bar

Strain Relief Bar

  • Rear support bar help to manage and route rear cable

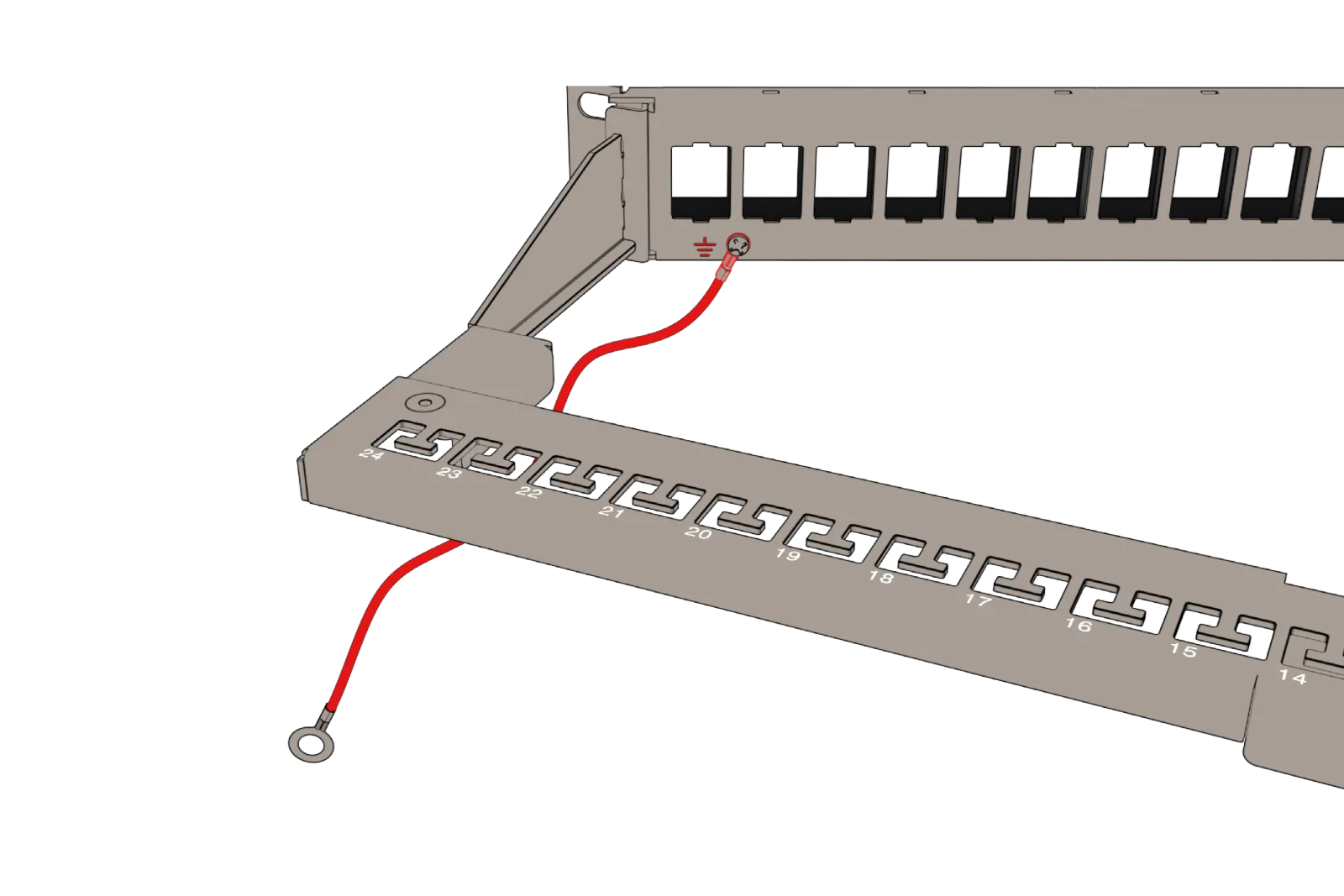

Bounding Jumper Kit

Bounding Jumper Kit

  • Shielded panel and bounding kit protect data from EMI/RFI

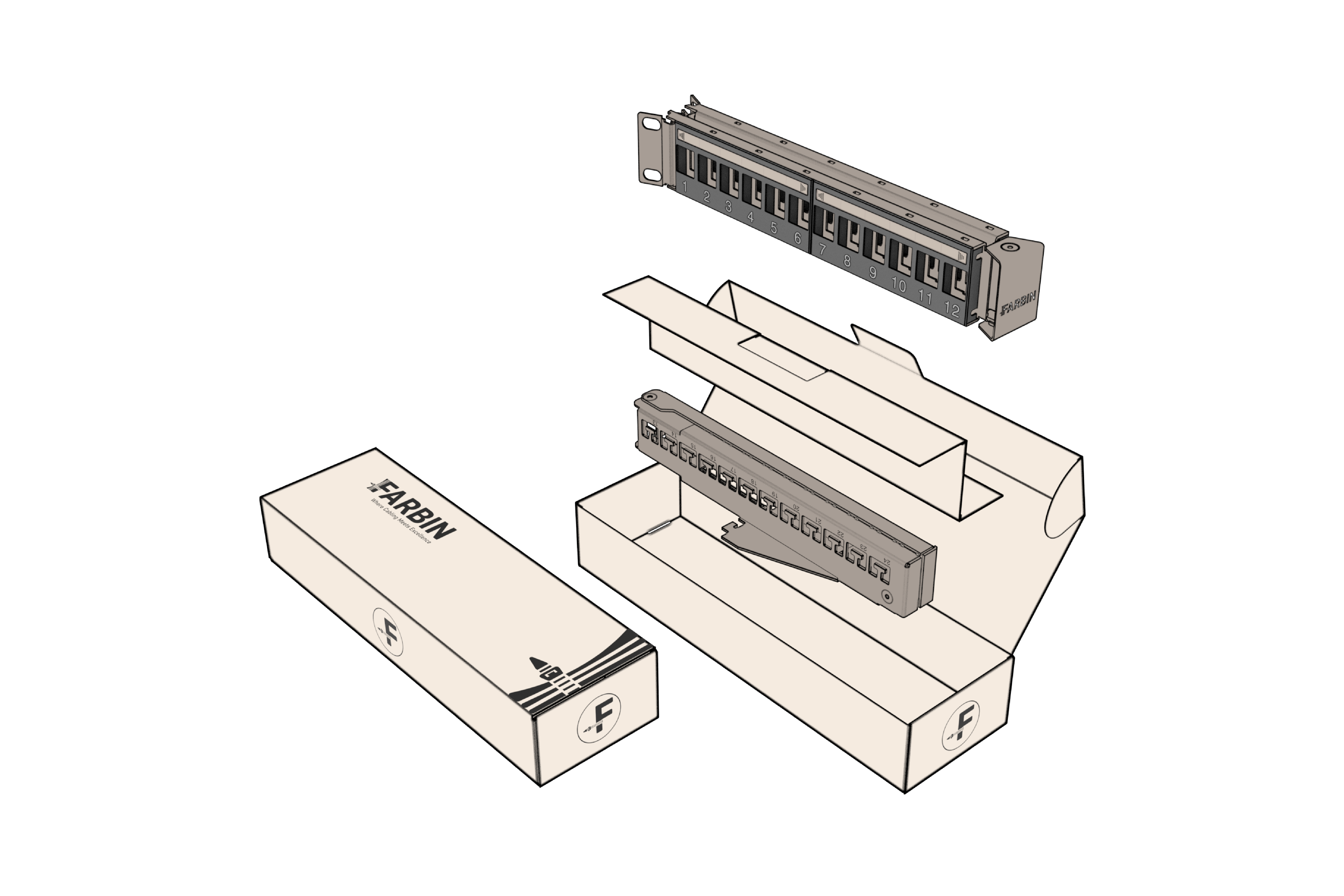

Packing Layout

Packing Layout

  • Cardboard box
  • L x W x H: 285x87x56mm
